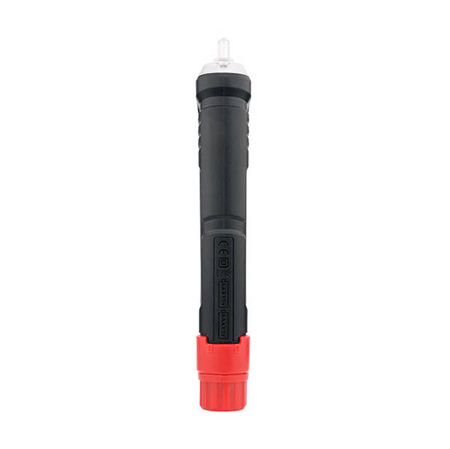

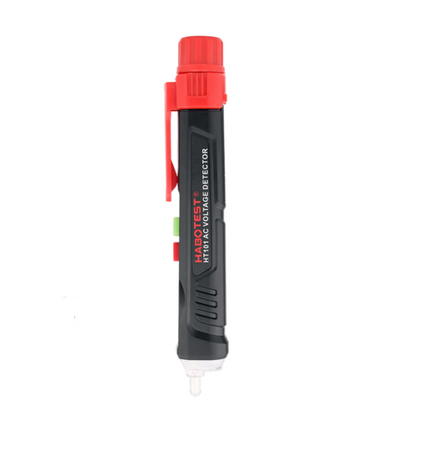

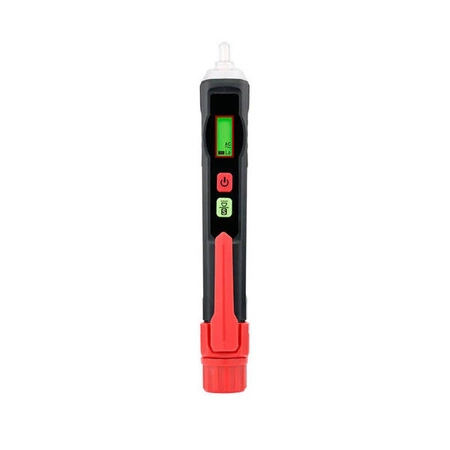

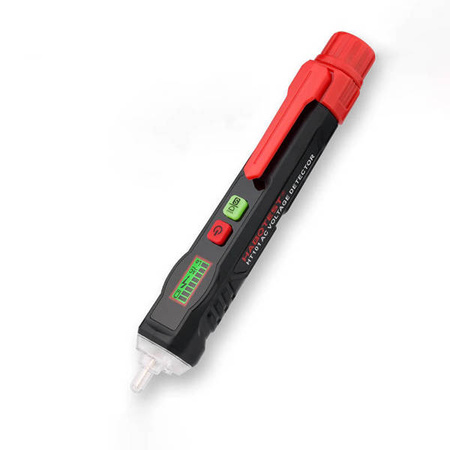

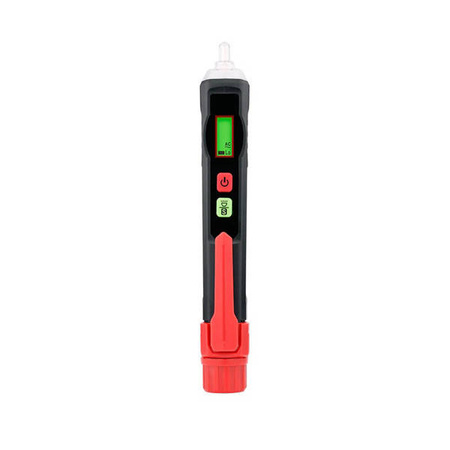

Habotest HT101 non-contact voltage and phase tester
- Habotest HT101 non-contact voltage and phase tester
- The Habotest non-contact voltage (NCV) and phase detector ensures precise measurement and safe use. Equipped with an LCD display and a sensitivity adjustment button - it is very convenient in use
Habotest HT101 non-contact voltage and phase tester
The Habotest non-contact voltage (NCV) and phase detector ensures precise measurement and safe use. Equipped with an LCD display and a sensitivity adjustment button - it is very convenient to use. It offers the function of checking breakpoints and also detecting active and inactive cables. After 3 minutes of inactivity, it turns off automatically. The built-in LED flashlight will make your work easier. The device is powered by 2 AAA 1.5 V batteries.
Exact measurement
HT101 enables precise, non-contact measurement. You can adjust its sensitivity using the built-in button. The voltage measures in the range of 12-1000V and 48 ~ 1000V. The detector also detects breakpoints, so it will be useful in many applications.
Active and inactive cable detection function
The detector intelligently detects active and inactive cables. It is also equipped with a double alarm - visual and audible. Just place the device on the surface of the wire. Green color of the display and a slow beep. meanscableinactive.Reddisplaycolorandveryfastalarm meanscable active.
Designed with user comfort and safety in mind
A clear LCD display will provide you with the most important information. HT101 also has a built-in LED flashlight. Thanks to it, you can use the device even in dark rooms. You don't have to worry about running out of battery too quickly if you forget to turn off the detector - it will automatically stop working after 3 minutes of inactivity. Additionally, the indicator will notify you when the battery level is low.
Small, handy, easy to transport
The device is compact, portable and convenient to use. Buttons placed in easily accessible places allow you to quickly and easily turn the detector on, turn it off and adjust the sensitivity. The built-in clip allows you to attach the HT101 to, for example, clothes, a bag or a backpack - so its possible transport will be extremely easy.
Specification
| Producer | Habotest | |
|---|---|---|
| Model | HT101 | HT100P |
| Voltage detection range | High sensitivity: AC 12-1000V; Low sensitivity: AC 48-1000V |
High sensitivity: AC 12-1000V; Low sensitivity: AC 48-1000V |
| Sampler shape | Round | Extended |
| Frequency | 50/60 Hz | 50/60 Hz |
| Alarm type | Sound and light | Sound and light |
| Non-contact phase detection | Yes | Yes |
| Backlight | Double, red and green | Double, red and green |
| Cable activity testing | Yes | Yes |
| Signal intensity display | 4-level bar chart | 4-level bar chart |
| Method of indicating signal intensity | Sound: Slow to Fast; Backlight: Green to Red; Bar Graph: Low to High |
Sound: Slow to Fast; Backlight: Green to Red; Bar Graph: Low to High |
| Flashlight | Yes | Yes |
| Automatic shutdown | Yes, after 3 minutes of inactivity | Yes, after 5 minutes of inactivity |
| Low battery indicator | Yes | Yes |
| Power | 2x AAA 1.5V batteries | 2x AAA 1.5V batteries (included) |
| Weight | Okay. 35 g | Okay. 32 g |
| Dimensions | 157 x 23 x 18.8 mm | 157 x 27 x 23 mm |
| Security | EN61010-1,-2-030; EN61326-1, CAT III 1000V |
EN61010-1,-2-030; EN61326-1, CAT III 1000V |
