BigBlue B433 20W photovoltaic panel
- The B433 charger is also equipped with a USB port (5 V / 2 A max.) and its output interface is SAE.

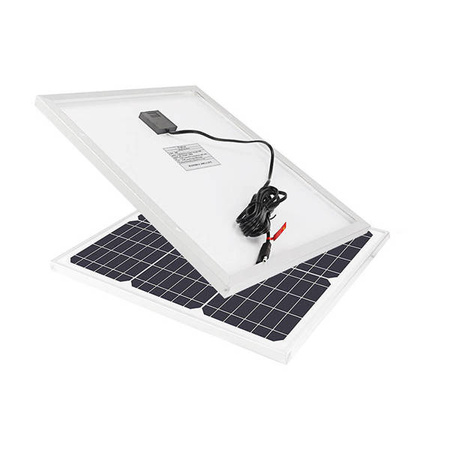

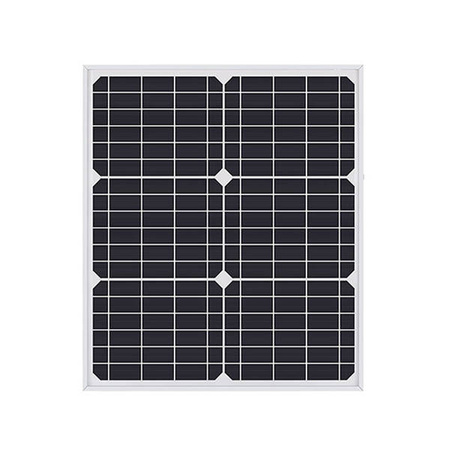

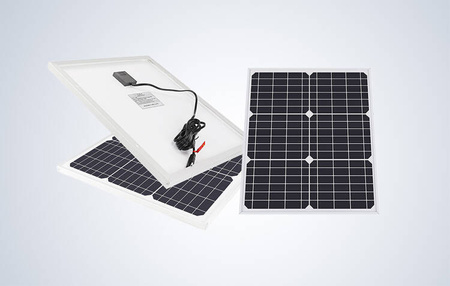

BigBlue B433 photovoltaic panel / solar charger
The semi-flexible BigBlue B433 20 W photovoltaic panel is perfect not only at home, but also, for example, on a yacht, at a campsite or while traveling in a camper. It is characterized by an efficiency of 20-21.5%, which translates into its efficient operation. Take advantage of publicly available, ecological and free solar energy to power your devices almost everywhere, save electricity and pay lower bills!
High efficiency
The B433 solar charger is equipped with monocrystalline cells, thanks to which its efficiency reaches 20-21.5%. Its maximum power is 20 W. The panel is also made of glass, PET and EVA. All this means that the B433 charger can serve you well for a long time. Get even more energy from the sun, don't waste money on high bills and don't worry about running out of electricity!
Performance and security
The product also allows charging in MCT (Maximum Current Tracking) mode. This allows it to provide more power than regular controllers. The B433 charger is also equipped with a USB port (5 V / 2 A max.) and its output interface is SAE. It also ensures safe use. It is CE, FCC and RoHS certified and protected against overcurrent, overload and short circuit. The built-in light indicator will provide you with information about its status.
Thoughtful design

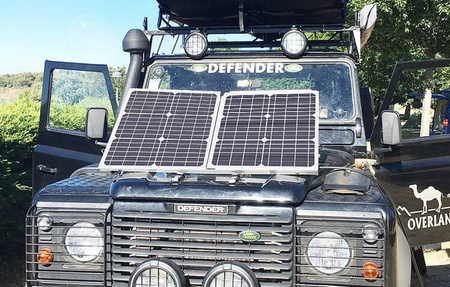

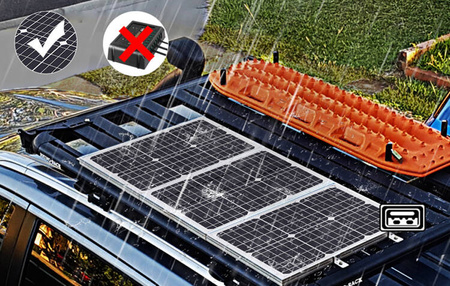

The B433 panel is relatively light and small. It weighs only 1.48 kg and its dimensions are 35 x 42 x 1.7 cm. You can successfully use it both at home and outside. Take it camping, on a camper trip, on a yacht or attach it to an electric golf cart. The product is very simple to install - its assembly is not a major challenge. The panel is also IP65 waterproof - you can safely use it even in the rain. Note: The panel is waterproof, but the solar controller is not.
Included
- 20 W photovoltaic panel
- Solar controller
- SAE cable
- SAE cable with clamps
Specification
| Producer | BigBlue |
|---|---|
| Model | B433 |
| Link type | Monocrystalline |
| Efficiency | Okay. 20-21.5% |
| Maximum power (Pmax) | 20 W |
| Max. tension | 18 V |
| Max. intensity | 1.11 A |
| Open circuit voltage (Voc) | 21.6 V |
| Short circuit current (Isc) | 1.19 A |
| Max. system voltage | 1000V |
| Output interface | SAE + clamps |
| Waterproof | IP65 |
| Operating temperature | -40°C - 85°C |
| Dimensions | 420 x 350 x 17 mm |
| Weight | 1.48 kg |
