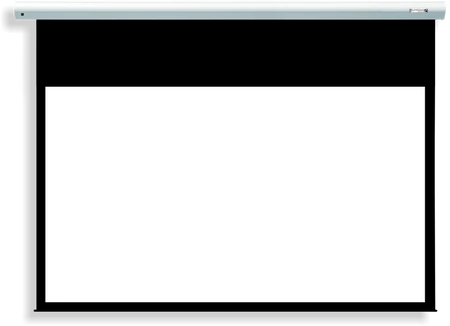

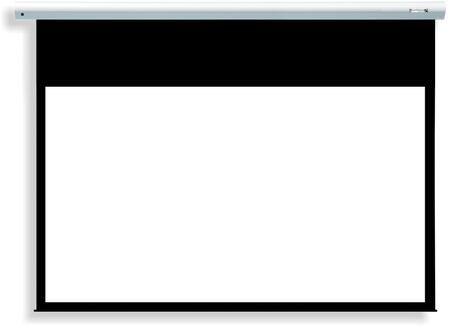

ANDROMEDA ELEGANT IM. screen

Electrically retractable projection screen from the PREMIUM professional line integrated IR control + RS connector + Dry Contact

Available formats: 4:3, 16:10, 16:9

Widths: 200 – 400 cm

Features:

• Electrically unfolded projection screen,
• IR remote control, RS connector and Dry Contact,
• Silent tube motor built into the screen cassette
• Smooth, stepless adjustment of the wall and ceiling mounting system for the screen,
• Integrated IR remote control (some screens from 305 cm widths may be equipped with an external RF control kit with RS232/485),

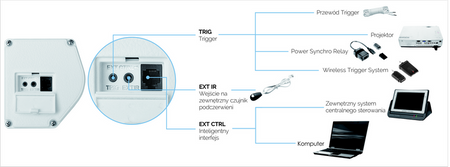

• Sockets built into the screen cassette (also in the copies in sizes above 305cm):
  12V Trigger,
  Input for external IR sensor (included),
  RJ11 control input (6 pin) – for a switch wall or control system (RS232/485/Dry Contact),
• Limit switch adjustment tool,
• Black frame around the active surface and black top strip (TOP) included serial,
• Projection material:
  Matt White HD,
  Matt Gray HD (only in 16:9 format)
• Possibility of cooperation with (optional):
  Power Synchro Relay,
  Wireless Trigger System,
  Wall switch,
  Wall switch with RS232/485 input.
• The 230V power supply is located on the left side of the screen cassette (it cannot be disconnected power cord from the screen).

STANDARD CONTROL

Manual switch - A button on the bottom of the cassette allows cyclic manual switching.

Integrated control (built into the cassette) - RS485/Central control; EXT-CTRL can be connected, either via a wall switch or via a central control adapter.

IR remote control - Wireless control, micro-adjustable remote control, remote control operation at a distance of 8 meters.

Limit switch adjustment tool

ADDITIONAL CONTROLS

Power Synchro Relay - Control activated remotely when the projector is turned on, mounted on the cable power supply, compatible with all projector models.

Wireless Wireless Trigger System - Wireless control, activated remotely when turned on projector, mounted in the projector's 12V Trigger socket.

RJ11 manual control (6 pin) - control via a wall switch, mounted to the RJ11 socket screens.

RJ11-RS485 manual control - control via a wall switch, mounted to the RJ11 socket, with USB and Rs485 input for central control systems.

DIMENSIONS

Format	Screen diagonal (active field)	Image area (mm)	Black borders (mm)			Cassette	A (mm)	Material
		W x H	B1	B2	B3	L (mm)		MW HD	MG HD
4:3	100″	2030 x 1520	50	50	80	2280	1773	X
	108″	2200 x 1650	50	50	80	2450	1899	X
	109″	2210 x 1660	50	50	80	2464	1910	X
	118″	2400 x 1800	50	50	80	2650	2049	X
	128″	2600 x 2000	50	80	80	2868	2271	X
	131″	2660 x 2000	50	80	80	2924	2313	X
	138″	2800 x 2100	50	80	80	3068	2421	X
	139″	2820 x 2110	50	50	80	3090	2401	X
	150″	3050 x 2290	50	80	80	3316	2607	X
	163″	3320 x 2490	50	80	80	3594	2811	X
	178″	3620 x 2710	50	80	80	3894	3036	X
	198″	4000 x 3000	50	80	80	4294	3336	X
16:10	93″	2000 x 1250	50	50	550	2250	2011	X
	94″	2030 x 1270	50	50	526	2280	1964	X
	102″	2200 x 1380	50	50	500	2450	2044	X
	111″	2400 x 1500	50	50	400	2650	2069	X
	121″	2600 x 1630	50	80	400	2868	2224	X
	123″	2660 x 1660	50	80	234	2924	2135	X
	130″	2800 x 1750	50	80	300	3068	2291	X
	142″	3050 x 1900	50	80	300	3316	2446	X
	154″	3320 x 2080	50	80	300	3594	2616	X
	168″	3620 x 2260	50	80	300	3894	2803	X
	188″	4000 x 2500	50	80	300	4259	3031	X
16:9	90″	2000 x 1130	50	50	650	2250	1986	X	X
	100″	2200 x 1240	50	50	550	2450	1957	X	X
	109″	2400 x 1350	50	50	450	2650	1969	X	X
	118″	2600 x 1460	50	80	450	2868	2112	X	X
	127″	2800 x 1580	50	80	300	3068	2116	X	X
	138″	3050 x 1710	50	80	300	3316	2256	X	X
	155″	3320 x 1870	50	80	300	3594	2408	X
	164″	3620 x 2040	50	80	300	3894	2577	X
	180″	4000 x 2250	50	80	300	4259	2782	X
