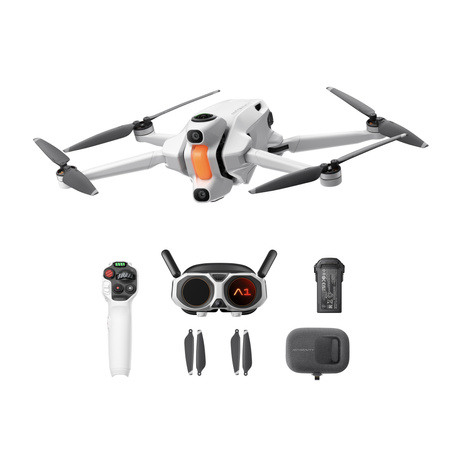

Antigravity A1 Standard Bundle
Producer code
6978913850002
DRONE
Class
EU C0 (with Standard Flight Battery)
EU C1 (with High-Capacity Battery)
Takeoff Weight
249 g (with Flight Battery)
291 g (with High-Capacity Flight Battery)
Dimensions
Folded: 141.3 × 96.2 × 81.4 mm
Unfolded (propellers extended): 308.6 × 382.3 × 89.2 mm
Max Flight Time
24 minutes (with Flight Battery)
39 minutes (with High-Capacity Flight Battery)
*Tested in a controlled windless environment at 25°C, 5.2K 30fps (video recording disabled), with the drone flying forward at 6 m/s at an altitude below 50m until low-battery auto-landing was triggered. Flight time may vary under different conditions.
Max Flight Distance (per charge)
13 km (with Flight Battery)
23 km (with High-Capacity Flight Battery)
*Tested in a controlled windless environment at 25°C, 5.2K30fps (video recording disabled), with the drone flying forward at 12 m/s at an altitude below 50 m until low-battery auto-landing was triggered. Flight time may vary under different conditions.
Max Ascent Speed
8 m/s (S Mode)
6 m/s (N Mode)
3 m/s (C Mode)
*Tested in a controlled windless environment at 25°C at an altitude below 50m.
Max Descent Speed
8 m/s (S Mode)
6 m/s (N Mode)
3 m/s (C Mode)
*Tested in a controlled windless environment at 25°C at an altitude below 50m.
Max Horizontal Speed (at sea level, no wind)
16 m/s (S Mode)
12 m/s (N Mode)
3 m/s (C Mode)
*Tested in a controlled windless environment at 25°C at an altitude below 50m.
Max Wind Speed Resistance
10.7 m/s (Level 5)
Max Takeoff Altitude
4,000 m (with Flight Battery)
3,000 m (with High-Capacity Flight Battery)
Global Navigation Satellite System
GPS
Galileo
Beidou
Hovering Accuracy Range
Vertical: ±0.1 m (with vision positioning) | ±0.5 m (with GNSS positioning)
Horizontal: ±0.1 m (with vision positioning) | ±0.5 m (with GNSS positioning)
Operating Temperature
-10°C to 40°C
Internal Storage
20GB
Internal File System
exFAT
Supported Storage
microSD (up to 1TB)
Recommended Memory Cards
SanDisk Extreme PRO V30 U3 A2 microSDXC - 64GB, 128GB, 256GB, 512GB, 1TB
Lexar Silver Plus A2 V30 microSDXC - 64GB, 128GB, 256GB, 512GB, 1TB
Kingston CANVAS GO! Plus A2 V30 microSDXC - 64GB, 128GB, 256GB, 512GB, 1TB
Camera
Image Sensor
1/1.28-inch
Lens Aperture
F2.2
Video Resolution
8K: 7680×3840@30/25/24fps
5.2K: 5248×2624@60/50/30/25/24fps
4K: 3840×1920@100fps
4K Slow Motion: 3840x1920@30/25/24fps
Photo Resolution
55MP (10496×5248)
14MP (5248×2624)
Video Format
INSV (Exported through Antigravity App or Antigravity Studio)
Photo Format
INSP (Exported through Antigravity App or Antigravity Studio)
DNG
Video Modes
Standard Video
Slow Motion
Photo Modes
Standard Photo
HDR
Burst
AEB
Video Encoding Format
H.264
H.265
Max Video Bitrate
170Mbps
ISO Range
100-6400
Shutter Speed
14MP Photo: 1/8000-1/2s
55MP Photo: 1/8000-1/20s
Sensing
Sensing Type
Forward and downward binocular vision system, supplemented with a 3D infrared sensor at the bottom of the drone
Forward
Measurement Range: 0.5–18 m
Effective Sensing Speed: Flight Speed ≤ 12 m/s
FOV: Horizontal 93°, Vertical 104°
Downward
Measurement Range: 0.3–7.5 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 107°, Left and Right 90°
Operating Environment
Forward: Surfaces with discernible patterns and adequate lighting (lux > 15)
Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. cement pavement, stout trees), and adequate lighting (lux > 15)
Video Transmission
Video Transmission System
OmniLink 360
Live View Quality
2K@30fps
Operating Frequency
2.400 GHz-2.4835 GHz
5.150 GHz-5.250 GHz
5.725 GHz-5.850 GHz
*5.150GHz-5.250 GHz and 5.725 GHz-5.850 GHz can be used only in coutries and regions where permitted by local laws and regulations.
Transmitter Power (EIRP)
2.4 GHz: < 30 dBm (FCC) | < 20 dBm (CE/SRRC/MIC)
5.1 GHz: < 23 dBm (CE) | < 21 dBm (FCC)
5.8 GHz: < 30 dBm (FCC/SRRC) | < 14 dBm (CE)
Max Transmission Distance (open, free of interference)
10 km (FCC)
8 km (SRRC)
6 km) (CE)
4 km (MIC)
*Tested outdoors at 25°C in an open, interference-free environment. Data reflects maximum one-way transmission distance without return-to-home under each standard. Actual performance may vary depending on environment, usage, and firmware.
Max Transmission Distance (open, with interference)
Strong Interference (urban/industrial): approx. 1–4 km
Medium Interference (suburban): approx. 3–6 km
Low Interference (seaside/suburb): approx. 5–10 km
*Tested under FCC standard in open environments with typical interference. Used for reference purposes only.
Max Transmission Distance (obstructed, with interference)
Low Interference/Buildings: approx. 0.1–0.5 km
Low Interference/Trees: approx. 0.5–3 km
*Tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
Max Transmission Rate
30Mbps
Average Latency
Approx. 150ms
*Tested in a open, interference-free environment. Actual latency may vary depending on the environmental differences.
Antenna
4 antennas, 2T2R
Communication
Protocol Wi-Fi
802.11 a/b/g/n/ac
Operating Frequency Wi-Fi
2.400–2.4835GHz
5.150–5.250GHz
5.725–5.850GHz
*5.150–5.250 GHz and 5.725–5.850GHz are only available in select countries and regions in accordance with local regulations.
Transmitter Power (EIRP) Wi-Fi
2.4 GHz: < 20 dBm (CE/SRRC/FCC)
5.1 GHz: < 20 dBm (FCC/CE/SRRC)
5.8 GHz: < 20 dBm (FCC/SRRC) | < 14 dBm (CE)
Protocol Bluetooth
Bluetooth 5.0
Operating Frequency Bluetooth
2.400 GHz-2.4835 GHz
Transmitter Power (EIRP) Bluetooth
<10 dBm
Flight Battery
Charging Time
Flight Battery: Approx. 45 mins (Hub) | Approx. 58 mins (Drone)
High-Capacity Flight Battery: Approx. 60 mins (Hub) | Approx. 103 mins (Drone)
*Charging times are measured in a controlled environment at 25°C
Charging Temperature
5°C to 45°C
Battery Type
Li-ion 2S
Charging Limit Voltage
8.6V (with Standard Flight Battery)
8.6V (with High-Capacity Battery)
Nominal Voltage
7.16V (with Standard Flight Battery)
7.16V (with High-Capacity Battery)
Energy
16.9Wh (with Standard Flight Battery)
31.1Wh (with High-Capacity Battery)
Battery Capacity
2360mAh (with Standard Flight Battery)
4345mAh (with High-Capacity Battery)
Weight Battery
< 67.5 g (Flight Battery)
< 108.6 g (High-Capacity Flight Battery)
Charger
Recommended Charger
Antigravity 65W GaN Fast Charger
Charging Hub
Weight Charging Hub
118.5 g
USB-C Input
PPS: 5–10V 5A
PD: 5V 3A, 9V 5A, 12V 5A, 15V 4A
Output
PD 3.0: 30W
15V 2A, 12V 2.5A, 9V 3A, 5V 3A
Compatibility Charging Hub
Antigravity A1 Flight Battery
Antigravity A1 High-Capacity Flight Battery
